Thermal Tape T-T-0.25 A2

Thermal Tape T-T-0.25 A2

Additional Images...

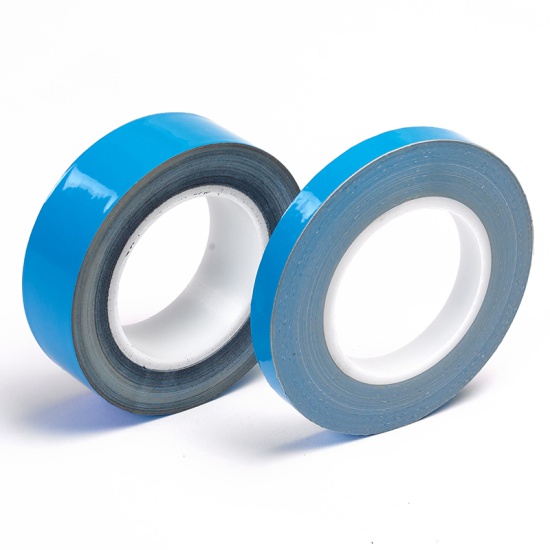

Picture of Thermal Tape T-T-0.25 A2
Image of Thermal Tape T-T-0.25 A2

Double-Sided Thermal Tape

A Thermal Interface Material with thermal conductance and strong adhesive properties, this tape is ideal for adhering to components such as heat sinks. It can be converted to any gasket size required in which case a liner is supplied on both sides or as a roll with a single-sided liner.

Features and Benefits...

  • Excellent Adhesion and Conformability
  • High Adhesive Compression Ratio
  • 0.6 W/mK
  • Low Thermal Impedance
  • Release Liner on one side for rolls, two sides for finished cut gaskets

Applications...

  • Electronic appliances, LED lighting, hardware, printing and other manufacturing industries
View Datasheet View Product Data

Pricing

Thermal Tape 0.25mm 500mmx300mm

T-T-0.25-A2-500*300

Sheet

1+
£36.65
5+
£20.95
10+
£18.61
25+
£16.75
50+
£13.96
Quantity Required:

Thermal Tape Roll 0.25mm 15mmx25m

T-T-0.25-A2-W15mm*L25M

Roll

1+
£96.85
5+
£60.95
10+
£54.15
25+
£48.74
50+
£40.65
Quantity Required:

Thermal Tape Roll 0.25mm 25mmx25m

T-T-0.25-A2-W25mm*L25M

Roll

1+
£128.95
5+
£85.00
10+
£75.56
25+
£68.00
50+
£56.67
Quantity Required:

Product Data...

Properties Test Method Unit T-T-0.25 A2
Material - - Acrylic Polymer, Ceramic, Silicone
Colour Visual - White
Thickness (±10%) - - 0.25
Thermal Conductivity ASTM-D5470 W/mK 0.6
Hardness (±5) ASTM-D2240 Shore A 70
Flammability Rating UL94 - V0
Breakdown Voltage ASTM-D149 kV >=5.0
Specific Gravity   g/cm3 1.7
Volume Resistance ASTM-D257 Ohm-cm 1015
Working Temperature   °C -40 - 120
Thermal Impedance
Pressure (psi) Thickness (mm) Compression Ration (%) Thermal Impedance (°C-in2/W)
10 0.25 0.4 1.02
20 0.24 5.2 1
30 0.23 8.4 0.98
40 0.22 11.2 0.96
50 0.22 13.6 0.95
60 0.21 16 0.94

Notes:

  1. Customised shapes are available
  2. The above performance data is tested in an environment of 70% humidity, temperature 25°C.
  3. This data is intended for reference purposes only. It is recommended that the material is tested to fully evaluate its performance ensuring it is fit for purpose.
